Productdetails:
|
IP classificatie: | IP69K | Comité Grootte: | 12.1“ Geleid |
---|---|---|---|
Resolutie: | 1280 x 800 | Cpu: | Intel Celeron Dual Core 3855U 1.6GHz |
Ram: | 4GB, tot 8GB | Harde schijf: | 32G SSD/(64G/128G/250G/500G SSD) Facultatief |
I/O haven: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitieve aanraking |
Machtsinput: | Gelijkstroom 12V~24V/Facultatieve gelijkstroom 9V~36V | Besturingssysteem: | Win7/8/10/Linux/Ubuntu |
Hoog licht: | PC van het Desktop waterdichte touche screen,linux Waterdichte Touch screenpc,RJ45-touchscreen bureaucomputer |
Eigenschappen

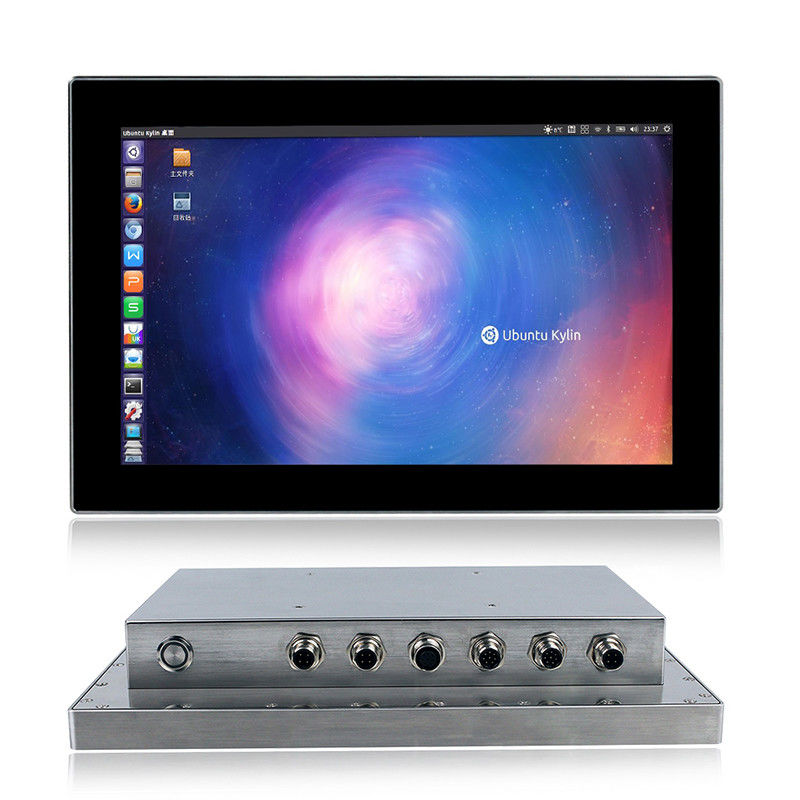

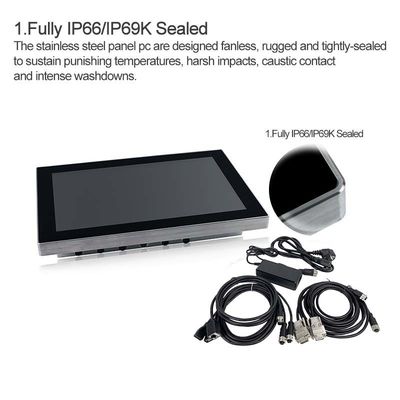

Deze waterdichte industriële paneelpc wordt gemaakt van volledig roestvrij staal, dat antiroest en anticorrosief is. Volledig verzegelde waterdichte IP69K met diverse waterdichte IO-inbegrepen Kabels. Het is de beste keus voor natte plaatsen zoals de lijn van de voedselverwerking, de winkel van de autowas, de landbouwindustrie, enz.
1.12.1“ TFT-leiden, resolutie 1280*800, capacitieve aanraking
Wpc-M012WCC | ||
Systeem | Cpu | Intel Celeron Dual Core 3855U 1.6GHz |
L2 Geheim voorgeheugen | 2MB | |
Chipsets | Intel-Soc van skylake-U | |
Geheugen | DDR4L 2133MHz 4GB, tot 16GB | |
Harde schijf | 1 x mSATA 32G SSD/(64G/128G/250G/500G SSD) Facultatief | |
Grafiek | Intel HD Graphics 510 | |
Netwerk | Intel®i211 1000 Mbps haven | |
Audio | Het Audiocontrolemechanisme van Realtek ACL662 | |
Verrichtingssysteem | Windows7/8/10, Linux, Unix, QNX | |
I / O | VGA | 1 x VGA/1 (Facultatief) x hd-MI |
LAN | 2 x (Facultatief) LAN | |
USB | 4 x (Facultatief) USB | |
Com | (Facultatieve) 2 x RS232 | |
Draadloos Netwerk | (Facultatief) WiFi + Bluetooth | |
Andere I/O Interface | 1 x-Machtsschakelaar | |
LCD Comité | Comité Grootte | 12.1“ Geleid |
Resolutie | 1280 x 800 | |
Beeldverhouding | 16:10 | |
Vertoningshelderheid | 450 cd/m2 | |
Contrastverhouding | 700:1 | |
Kleuren | 16.7M, 76% NTSC | |
Reactietijd | 50000 (min.) U | |
Het bekijken Hoek | 80 / 80/80/60 (CR≥10) (L/R/U/D) | |
Touch screen | Touch screentype | 10 punt capacitieve aanraking |
Overbrenging | >90% | |
Reactietijd | <5ms> | |
Oppervlaktehardheid | ≥6H | |
Leveringsvoltage | 5.0V gelijkstroom | |
Het aanrakingsleven | ≧ 3000W | |
Institutioneel | Materiaal | Roestvrij staal SUS04 |
Kleur | Opgepoetste geborstelde oppervlakte | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterdicht Tarief | IP66/IP69K | |
Productdimensie | 312 x 214 x 55 mm | |
Verwijderde Grootte | / | |
Verpakkingsgrootte | 450 x 170 x 350 mm | |
Brutogewicht | 7,0 kg | |
Macht en Milieu | Werkende Temperatuur | -10~60°C |
Opslagtemperatuur | -20~80°C (- 22~176°F) | |
Relatieve Vochtigheid | non-condensing 5%~95%@40°C, | |
Trillingswaaier | 5-500 Herz, 0,026 G2/Hz, 2,16 Grms, X, Y, Z, 1 uur per as | |
Externe Voeding | AC 100 - 240V~50/60Hz, 1.5A | |
Het werk Voltage | Gelijkstroom 12V~24V/facultatief (+9V~36V) | |
Machtsconsumptie | ≦25W |
het Roestvrije staalcomité van 1x wpc-M012WCC PC
1x nutsdvd Bestuurder
1x machtsadapter
1. Q: Bent u een fabrikant of een handelsmaatschappij?
A: Wij zijn een professionele fabrikant met meer dan 10 jaar ervarings op industrieel automatiseringsgebied.
2. Q: Verleent u ODM/OEM of de aangepaste dienst?
A: Ja, steunen wij OEM&ODM-de dienst, laten u de producten krijgen u precies wilt.
3. Q: Welke certificatie hebt u?
A: Er zijn de certificaten van Ce, van RoHS, FCC, van IP68, IP69K-, enz.
4. Q: Hoe lang is de garantie?
A: Onze fabriek beloofde garantie is 1 jaar.
5. Q: Wat is de levertijd?
A: 3 werkdagen voor steekproevenorde, 15 werkdagen voor massaproduktie.
